Innomar Medium-100 Subbottom Profiler
Included Features
- Heave / Roll beam stabilization
- 24-bit SLF full waveform data acquisition / Innomar “SES3” data format
- Multi-ping mode for maintaining a high pulse rate in deep waters
- Multi-frequency signals
- LFM chirp (5 – 15 kHz)
- KVM extender for remote control
- SESWIN basic remote-control via COM / UDP (e.g. line start/stop, line name)
Product Description

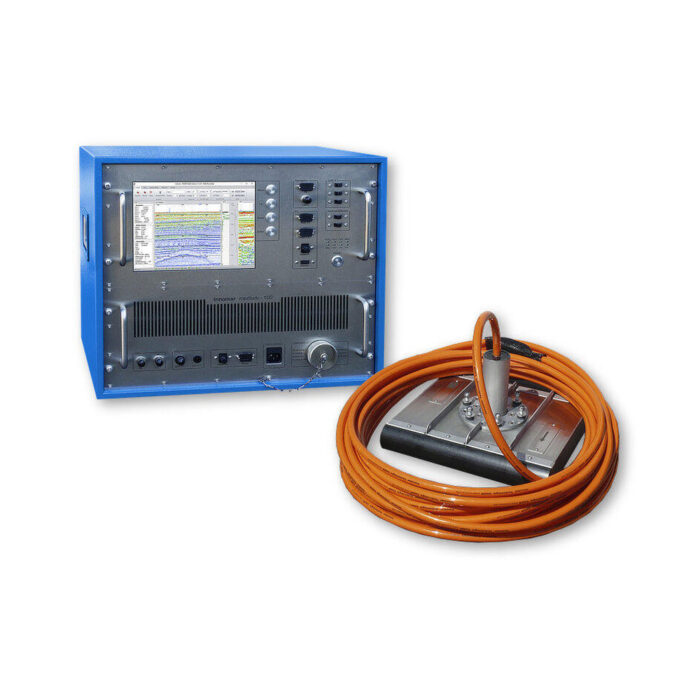

Includes: – Innomar Medium-100 transducer with 30m cable – Innomar Medium-100 transceiver – Cables for interfacing and grounding – SESWIN / SESConvert / ISE s/w for data logging, conversion, and processing – Operator console including KVM extender, keyboard, mouse
The Innomar “medium-100” parametric sub-bottom profiler is designed for offshore applications down to 2,000m water depth. The transducer can be either mounted over-the-side or in the hull.
The Innomar “medium-100” SBP acquires full-waveform data (24 bit) that can be processed with any seismic software (SEG-Y format). Innomar also provides the ISE post-processing software specialized on the Innomar SBP data.
The first generation of this SBP model was introduced in 2004 (“SES-2000 medium”), while the latest generation has been launched in 2020.
QuickStart Guid: Innomar Medium-100 Subbottom Profiler
SBP Manual: Innomar Medium-100 Subbottom Profiler
