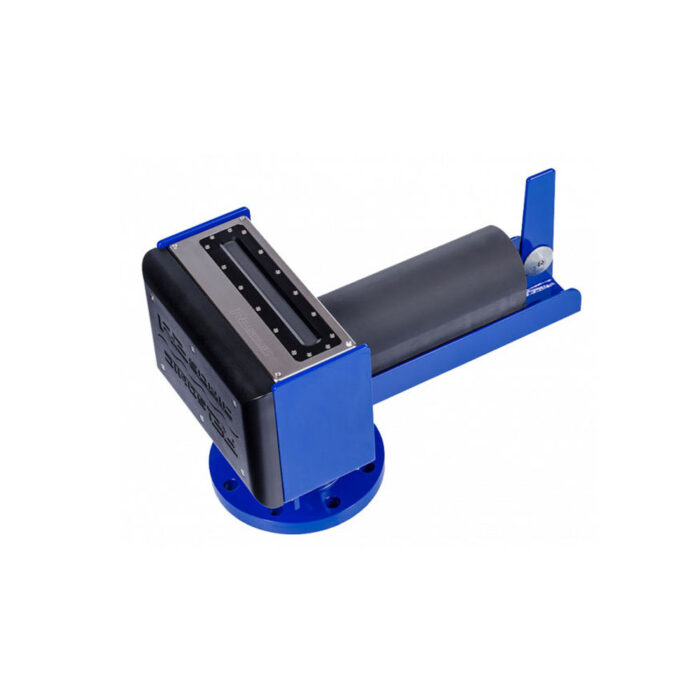

R2Sonic 2022 Multibeam Sonar (Rental)

Equipment rental to supply an R2Sonic 2022 multibeam sonar system. Comes with mounting frame, real-time SVS, SIM interface box, 15-meter deck cables, Sonic Control software, and shipping cases.

Categories: , , Tags: SKU: P/N 10000003-1

Product Description

Available as:

  • R2Sonic 2022 Wideband Multibeam Echosounder
  • R2Sonic 2022 Receiver
  • R2Sonic 2022-AUV Wideband Multibeam Echosounder

Scope of supply includes: 1x Broadband + Wideband Receiver, 170-450kHz, Penconn connector 1x Broadband + Wideband Projector, 170-450kHz 1x Projector cable, 0.439m 1x 15m Sonar deck cable, circular connector 1x RX cable clamp kit 1x TX cable clamp kit 1x Power cable 1x Sonic 2022 Sonar Interface Module (SIM) 1x Sonic 2022 Operator Control Program 1x Sonic 2022 Durable Transport Case 1x Sonic 2022 Mounting Hardware 1x Sonic 2022 Operator & Maintenance Manual (CD)

Small form factor multibeam sonar, ideal for remote vehicle and small boat operations, with a range of up to 400m+.

High level description:

  • Great resolution: 0.6⁰ x 0.6⁰ at 700kHz
  • Highly portable: receiver is 60% of the size of the Sonic 2024 receiver
  • Price competitive

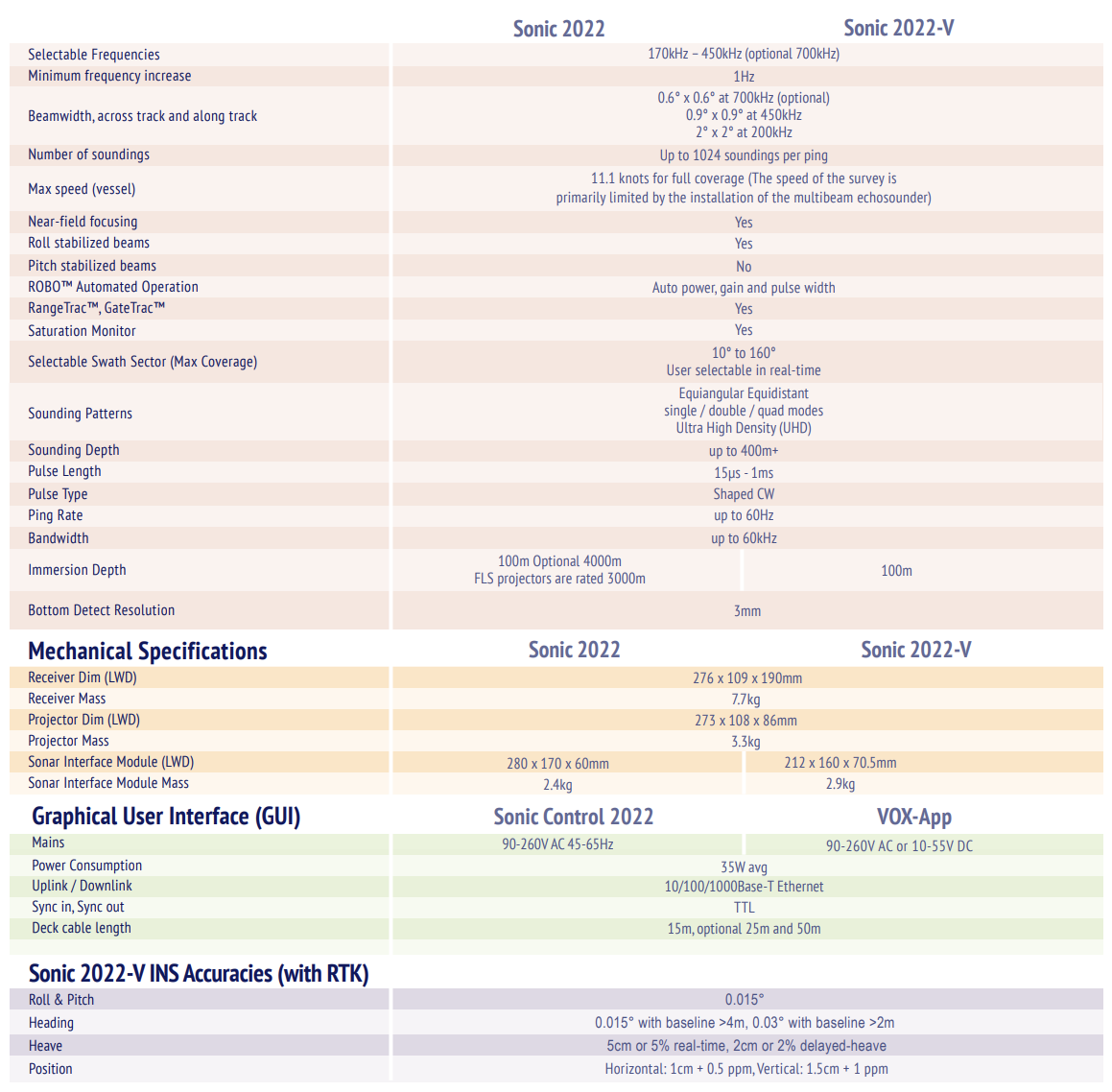

Factsheet: R2Sonic 2022 Receiver
