Product Description

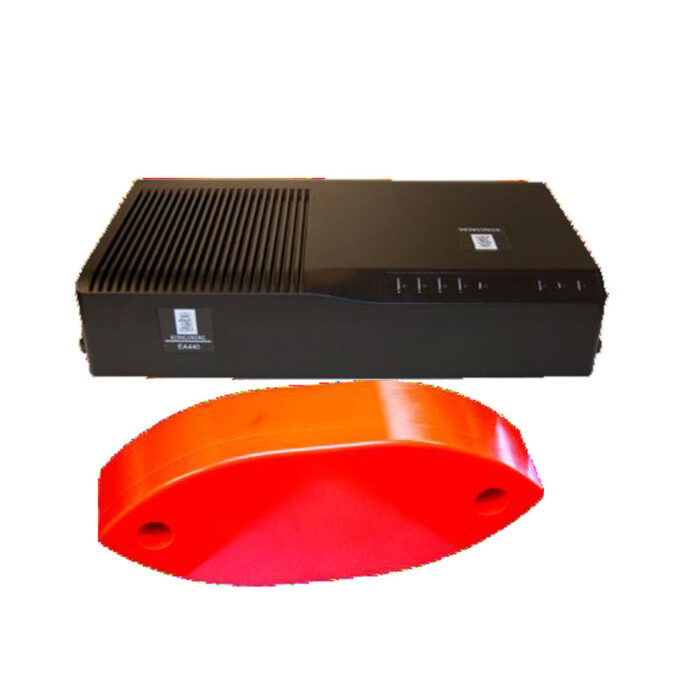

Equipment rental to supply a Kongsberg EA 440 Broadband Single Beam Echo Sounder system. Comes with a WBT topside interface, Simrad 38/200 kHz transducer, interface cabling, USB containing software and user manual, in transport case.
Note: Other transducers are available upon request.

The EA 440 is a hydrographic multi-frequency echo sounder using wideband technology. The EA 440 has been developed for use in shallow to medium depth waters. A variety of highly efficient transducers are available to suit all of your operational needs; including depth observations from extreme shallow (0.2m) down to 3000 m water depths, side-scan sonar imaging from hull-mounted side-looking transducers, as well as sub-bottom profiling functionality, all in one easy-to-use system.

KEY FEATURES

• The EA 440 is a high precision hydrographic echo sounder.
• Multiple applications depth observations, side scan and sub-bottom light
• Up to eight simultaneous channels
• Frequencies from 38 kHz to 500 kHz
• Sub-bottom functionality at 15 kHz
• CW/FM pulse forms
• Easy to install on Windows computers
• Roll, pitch and heave compensation
• True raw data logging
• World-class bottom detection
