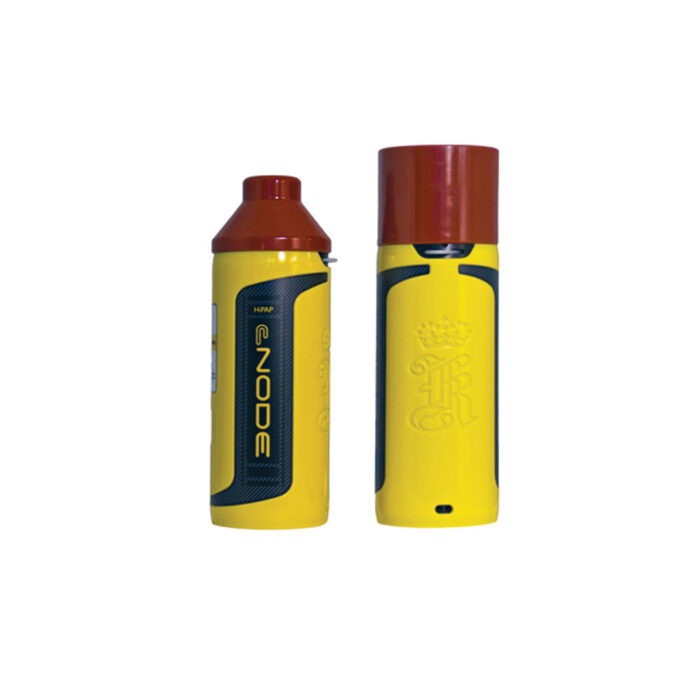

Kongsberg cNODE MiniS 31-180 Beacon w/Pressure Sensor
Kongsberg cNODE MiniS 31-180 Beacon with Pressure Sensor
Equipment rental to supply a cNODE? MiniS transponder. Small and light enough to be used by divers and shallow water ROV’s. Comes with pressure sensor rated to 1000m, charging kit and transit case.
Product Description
Equipment rental to supply a cNODE? MiniS transponder. Small and light enough to be used by divers and shallow water ROV’s. Comes with pressure sensor rated to 1000m, charging kit and transit case.
Kongsberg Maritimes cNODE MiniS transponders, are one of the most advanced HiPAP mini SSBL and LBL transponders in the market today. The cNODE MiniS covers an impressive range of features, as well as 500+ Cymbal digital acoustic channels.
The cNODE MiniS transponders are easy to utilise together with HiPAP, cPAP and μPAP systems in underwater positioning and are ideal for positioning of ROVs. The MiniS also operate with data telemetry, for example checking battery status, transmitting power level and measuring LBL baselines.
For towfish tracking application, models with in-built presseure sensor is also available.
Key features
- Cymbal channels (500+)
- Responder and transponder functionalities
- Telemetry capabilities
- SSBL positioning
- LBL positioning
- Range measurements between transponders
- Down to 4000 metre depth rated
- Various transducers available for a wide range of applications
- Coated anodised aluminium housing
- Internal rechargeable Li-Ion battery
- On deck battery charger available
- External Power; 24VDC (20 – 28V), 1A
- External connector for configuration and software update
- Transmitting power; Max, High, Low, Min (6 dB steps)
- External on/off function
- Internal tilt sensor ± 90°
- Pressure relief valve (safety device)
- Frequency band 21-31kHz
- Operating temperature -5ºC to +55ºC
