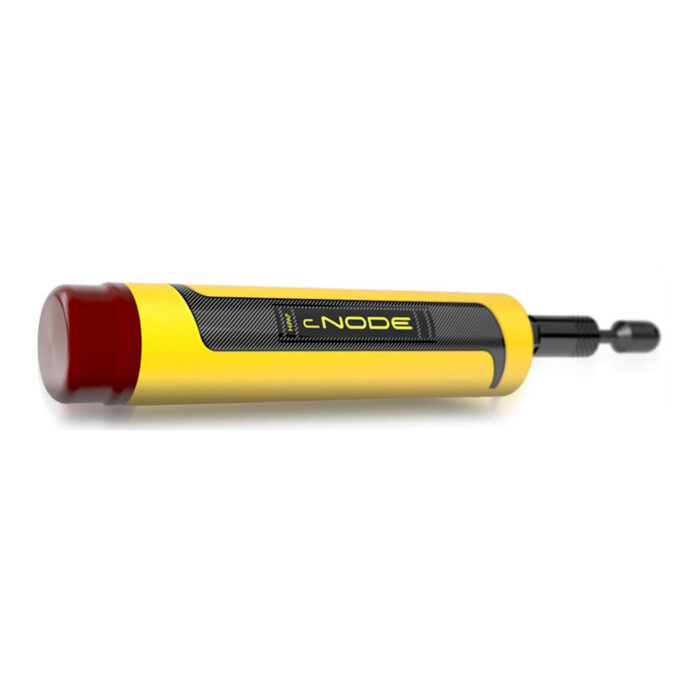

Kongsberg cNODE Micro 31-180 Beacon
Kongsberg cNODE Micro 31-180 Beacon
Equipment rental to supply a cNODE? Micro transponder. Small and light enough to be used by divers and shallow water ROV’s. Comes with pressure sensor rated to 600m, charging kit and transit case.
Product Description
Equipment rental to supply a cNODE? Micro transponder. Small and light enough to be used by divers and shallow water ROV’s. Comes with pressure sensor rated to 600m, charging kit and transit case.
The cNODE® Micro transponder rated to 600 meters, is small and light enough to be used by divers and shallow water ROV’s. Operating on KONGSBERG Cymbal digital acoustic protocols the cNODE Micro provides the optimal positioning performance with the KONGSBERG range of SSBL systems from µPAP® through to HiPAP®.
The telemetry capability allows the battery status to be read during operation and the integrated tilt sensor can be turned on and off with positioning updates. Multiple cNODE® Micro transponders can be interrogated simultaneously in SSBL positioning mode using the µPAP® and HiPAP® Fast track feature to ensure the fastest possible updates during operation.
Features
Some common features of the cNODE® Micro include:
- Cymbal channels (500+)
- Acoustic telemetry for battery status and tilt sensor
- Responder and transponder functionalities
- SSBL positioning
- LBL positioning
- Range measurements between transponders
- 600 metre depth rated
- 180º omnidirectional beam
- Coated Anodised aluminium housing
- Internal rechargeable Li-Ion battery
- External connector for configuration, software update and charging
- External on/off function
- Internal tilt sensor ± 90°
- Pressure relief valve (safety device)
- Frequency band 21-31 kHz
- Operating temperature -5 ºC to +55 ºC

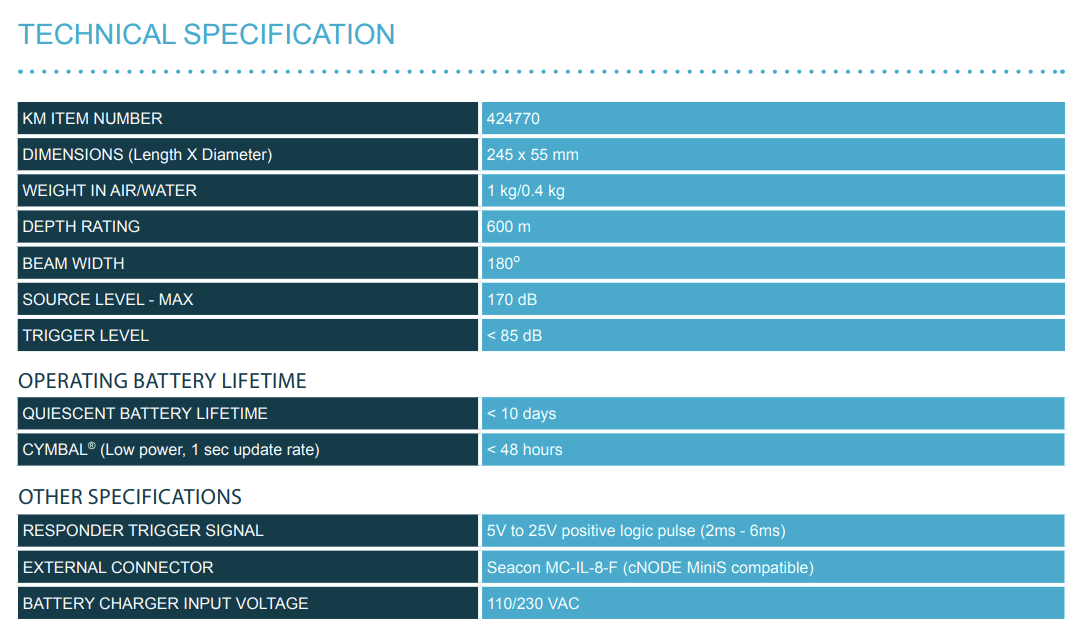

Technical specification
- Dimensions (Length X Diameter): 245 x 55 mm
- Depth rating : 600 m
- Beam width : 180º
- Source level – max : 170 dB
- Trigger level : < 85 dB
