Product Description

Equipment rental to supply of GAPS M7 pre-calibrated USBL system . Optional accessories include Applied Acoustics 1100 or 1130 Transponder and an OTS pole mount.

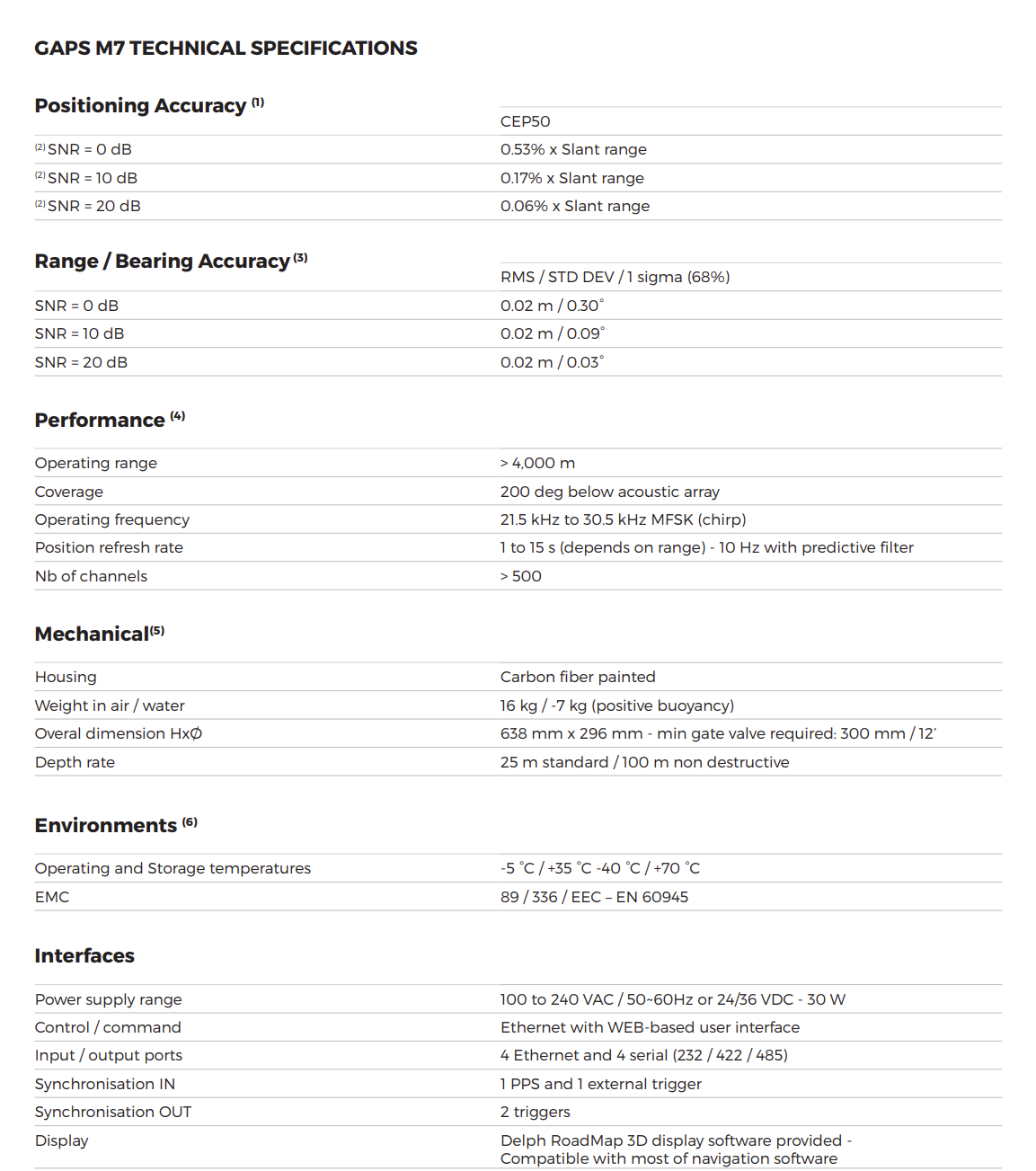

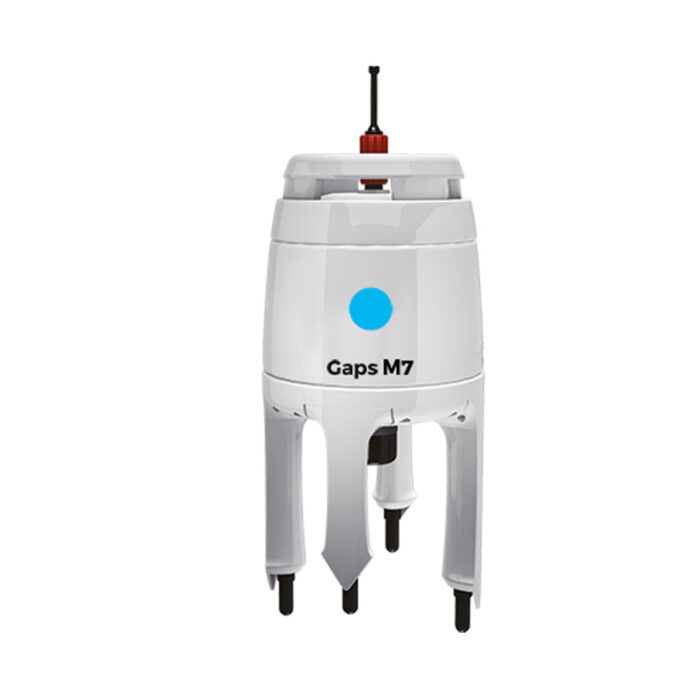

GAPS M7 is a high performance Ultra Short Baseline positioning and communication system for locating and communicating subsea assets. It combines an USBL antenna and a fiber-optic inertial navigation system (INS) in the same housing. USBL calibration on the field is not required anymore. Advanced acoustic techniques including wideband signals ensure maximum performance in most difficult conditions. Its unique 3D acoustic array enables tracking and communication from the deep sea to extremely shallow water, and even at angles above horizontal. Packing List – Gaps acoustic array and INS head – CD box (software package, Quick start guide, User Manual electronic copy) – Surface Gaps-Box – Main cable (50 m or 95 m long)
