Innomar Medium-70 Subbottom Profiler
Included Features
- Heave / Roll beam stabilization
- 24-bit SLF full waveform data acquisition / Innomar “SES3” data format
- Multi-ping mode for maintaining a high pulse rate in deep waters
- Multi-frequency signals
- LFM chirp (3 – 12 kHz)
- KVM extender for remote control
- SESWIN basic remote-control via COM / UDP (e.g. line start/stop, line name)
- Transducer frame with integrated shock absorbers for hull-mounting
Product Description

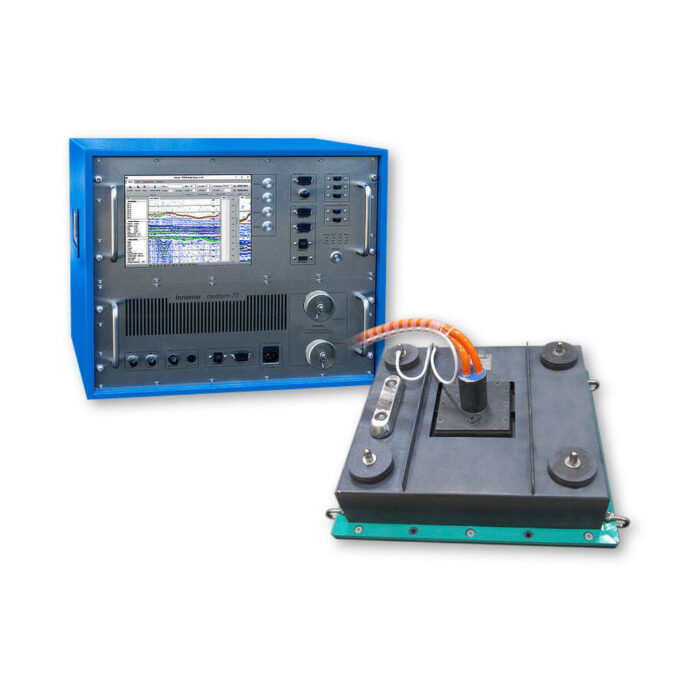

The Innomar “medium-70” parametric sub-bottom profiler is designed for offshore applications down to 2,500m water depth.
This model is available in two versions. The basic version features heave and roll compensation while the “RP” version offers additional pitch compensation.
The Innomar “medium-70” SBP acquires full-waveform data that can be processed with any seismic software (SEG-Y format). Innomar also provides the ISE post-processing software specialized on the Innomar SBP data.
The first generation of this SBP model was introduced in 2012 (“SES-2000 medium-70”), while the latest generation has been launched in 2021.
