Impact Subsea ISS360

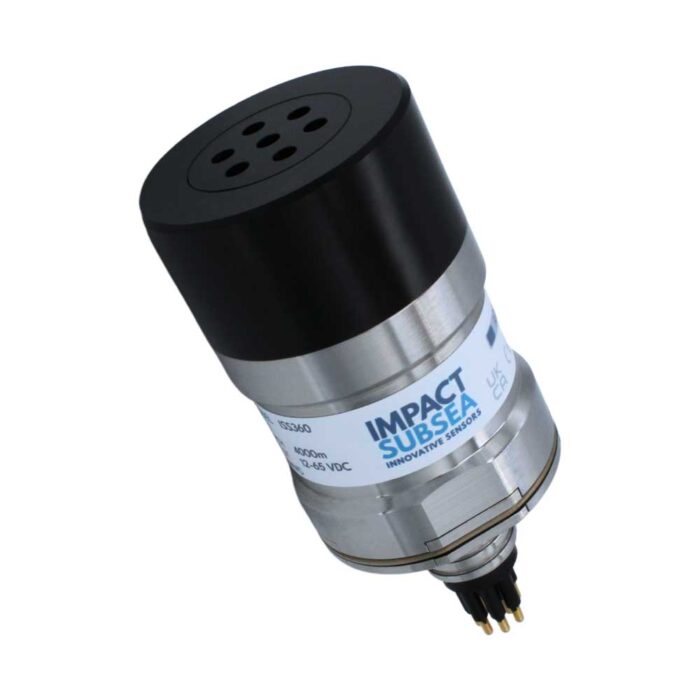

Impact Subsea ISS360 Compact Imaging Sonar
Equipment to supply a small and portable Compact Imaging scanning sonar system. Comes with a titanium instrument, 0.5-meter interface whip, USB drive with SeaView configuration software and user manual, quick start guide, and transit case.

Product Description

Impact Subsea ISS360 available in these options:

  • Impact Subsea ISS360 Sonar No ARS, Titanium, 4000m
  • Impact Subsea ISS360 Sonar No ARS, Titanium, 6000m
  • Impact Subsea ISS360 Sonar No ARS, Titanium, 6000m, HD
  • Impact Subsea ISS360 Sonar With ARS, Titanium, 4000m
  • Impact Subsea ISS360 Sonar With ARS, Titanium, 6000m
  • Impact Subsea ISS360 Sonar With ARS, Titanium, 6000m, HD

The ISS360 range of Imaging Sonars provide excellent image clarity with a long range capability.

The ISS360 is the world’s most compact imaging sonar and provides an ideal solution for ROV & AUV navigation, obstacle avoidance and target identification for the smallest to the largest underwater vehicles. For operations requiring a higher angular resolution and range capability the ISS360HD is an ideal choice.

Both the ISS360 and ISS360HD utilise a Titanium housing to enable many years of operation. The ISS360 is available in depth ratings of 4,000 meters / 13,123 feet or 6,000 meters / 19,658 feet.  The ISS360HD is depth rated to 6,000 meters / 19,658 feet as standard.

  • 360° Field of Vision
  • Long Range Capability
  • Optional Integrated Pitch & Roll
  • 4,000 or 6,000m Depth Rating
  • Excellent Image Clarity
  • Small Form Factor
  • CHIRP Acoustics
  • No Slip Rings

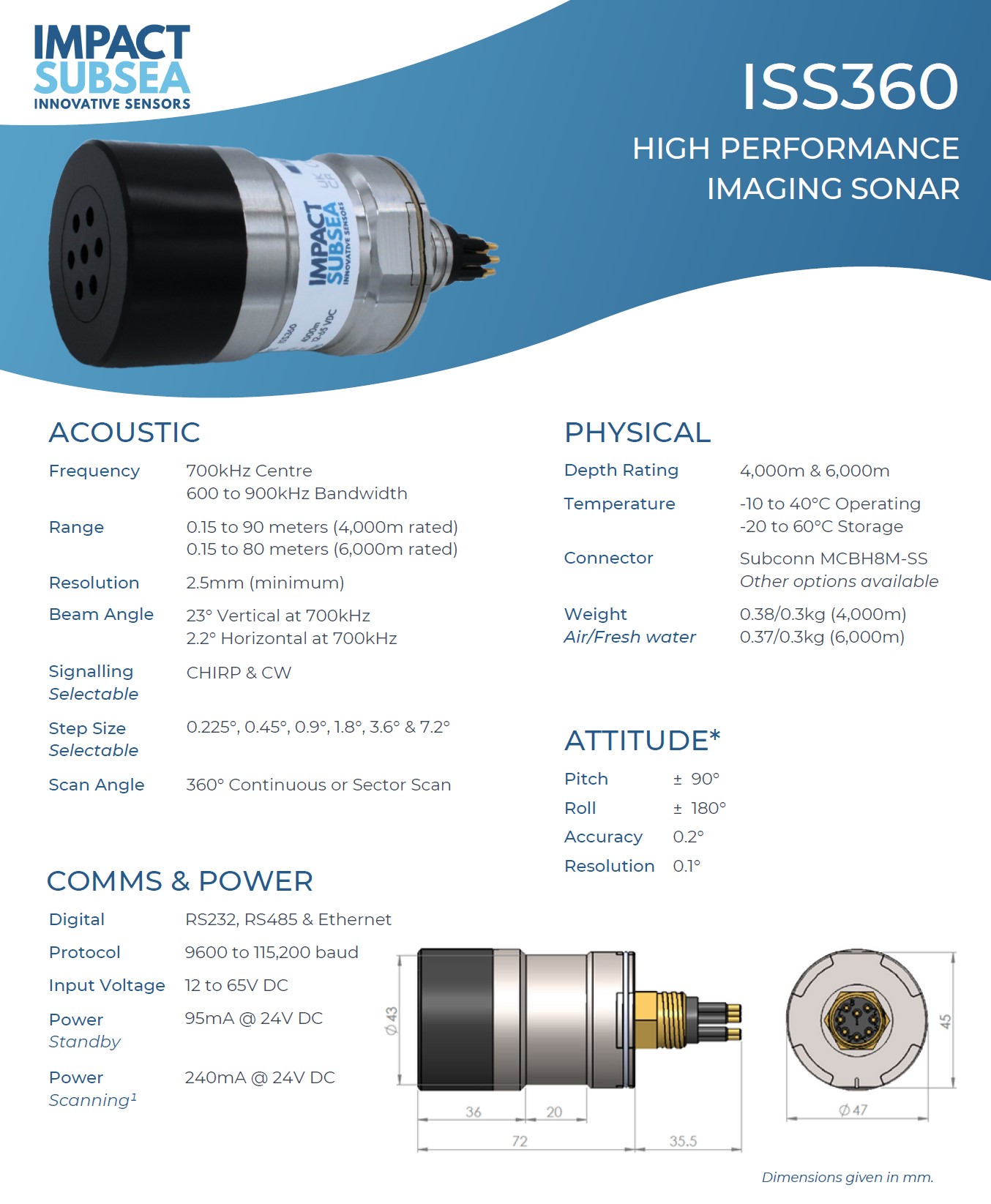

Factsheet: Impact Subsea ISS360
Manual: Impact Subsea ISS360
