Impact Subsea ISM3D

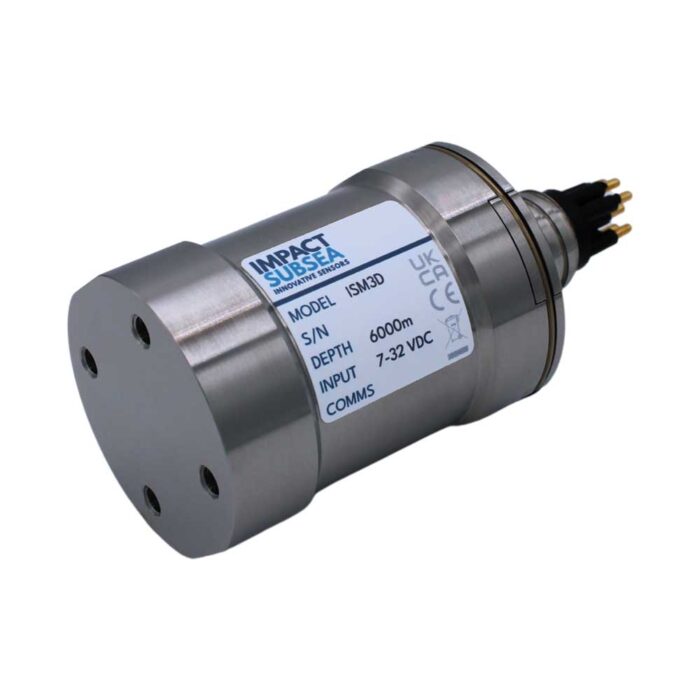

Impact Subsea ISM3D Motion Sensor, Titanium 6k Rated
Equipment to supply Underwater Attitude and Heading Reference System (AHRS) with Titanium or Acetal housing and selectable Inertial Mode. Comes with 0.5-meter interface whip, USB drive with SeaView configuration software and user manual, quick start guide, and transit case.

Product Description

Impact Subsea ISM3D

The ISM3D is a highly accurate underwater Attitude & Heading Reference System.

The ISM3D utilises high grade MEMS based Accelerometers, Angular Rate Gyroscopes and Magnetometers all of which feed into an advanced fusion engine driven by a dual core micro-processor.

The unit provides Heading to ±1° of local Magnetic North with Pitch and Roll to ±0.07° accuracy.

Provided in a Titanium housing, depth rated to 6,000 meters, with a length of 65mm – the ISM3D sets a new standard in size, durability and capability.

Also available in an Acetal Housing depth rated to 1,000 meters or as an OEM system.

  • ±1° Heading Accuracy
  • ±0.07° Pitch & Roll Accuracy
  • Inertial Mode for Magnetic Immunity
  • Software to View, Log & Configure
  • Depth Rated to 6,000 Meters
  • Robust & Compact Housing
  • Emulate Any Device
  • Digital Interfaces

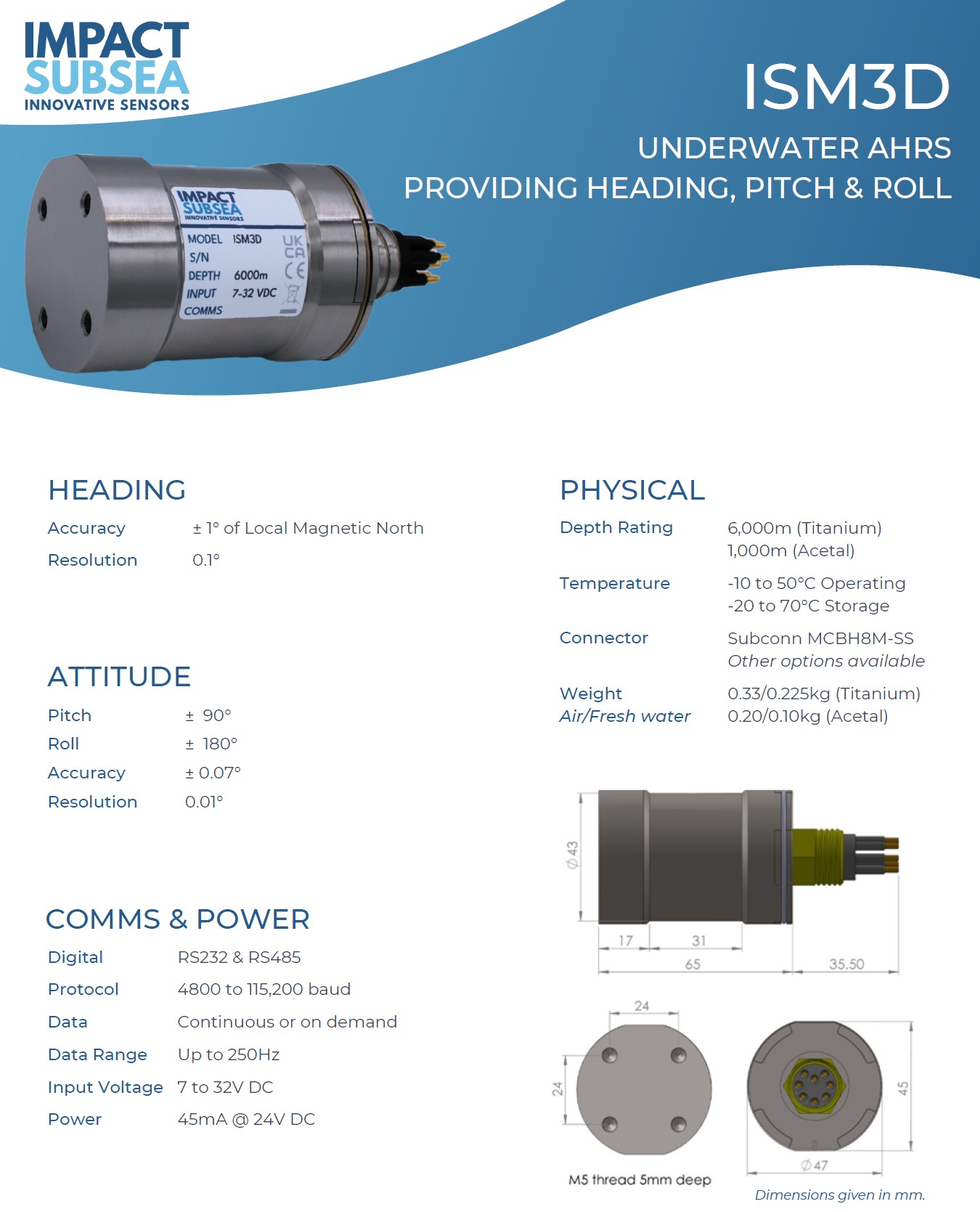

Factsheet: Impact Subsea ISM3D
Manual: Impact Subsea ISM3D
