Impact Subsea ISD4000 (Rental)

Impact Subsea ISD4000 Depth Sensor
Equipment rental to supply an Underwater depth (pressure) and temperature sensor with titanium housing and integrated AHRS (roll, pitch, heading sensor). Comes with 0.5-meter interface whip, USB drive with SeaView configuration software and user manual, quick start guide, and transit case. Pressure rating: 300dBar

Product Description

Impact Subsea ISD4000 available in these options:

  • Impact Subsea ISD4000 Depth & Temperature AHRS, Acetal, 10 Bar-100m
  • Impact Subsea ISD4000 Depth & Temperature AHRS, Acetal, 30 Bar-300m
  • Impact Subsea ISD4000 Depth & Temperature AHRS, Acetal, 50 Bar-500m
  • Impact Subsea ISD4000 Depth & Temperature AHRS, Titanium, 10 Bar-100m
  • Impact Subsea ISD4000 Depth & Temperature AHRS, Titanium, 100 Bar-1000m
  • Impact Subsea ISD4000 Depth & Temperature AHRS, Titanium, 30 Bar-300m
  • Impact Subsea ISD4000 Depth & Temperature AHRS, Titanium, 300 Bar-3000m
  • Impact Subsea ISD4000 Depth & Temperature AHRS, Titanium, 400 Bar-4000m
  • Impact Subsea ISD4000 Depth & Temperature AHRS, Titanium, 50 Bar-500m
  • Impact Subsea ISD4000 Depth & Temperature AHRS, Titanium, 600 Bar-6000m
  • Impact Subsea ISD4000 Depth & Temperature Calibration Block, Titanium
  • Impact Subsea ISD4000 Depth & Temperature No AHRS, Acetal, 10 Bar-100m
  • Impact Subsea ISD4000 Depth & Temperature No AHRS, Acetal, 30 Bar-300m
  • Impact Subsea ISD4000 Depth & Temperature No AHRS, Acetal, 50 Bar-500m
  • Impact Subsea ISD4000 Depth & Temperature No AHRS, Titanium, 10 Bar-100m
  • Impact Subsea ISD4000 Depth & Temperature No AHRS, Titanium, 100 Bar-1000m
  • Impact Subsea ISD4000 Depth & Temperature No AHRS, Titanium, 30 Bar-300m
  • Impact Subsea ISD4000 Depth & Temperature No AHRS, Titanium, 300 Bar-3000m
  • Impact Subsea ISD4000 Depth & Temperature No AHRS, Titanium, 400 Bar-4000m
  • Impact Subsea ISD4000 Depth & Temperature No AHRS, Titanium, 50 Bar-500m
  • Impact Subsea ISD4000 Depth & Temperature No AHRS, Titanium, 600 Bar-6000m

Equipment rental to supply an Underwater depth (pressure) and temperature sensor with titanium housing and integrated AHRS (roll, pitch, heading sensor). Comes with 0.5-meter interface whip, USB drive with SeaView configuration software and user manual, quick start guide, and transit case. Pressure rating: 300dBar

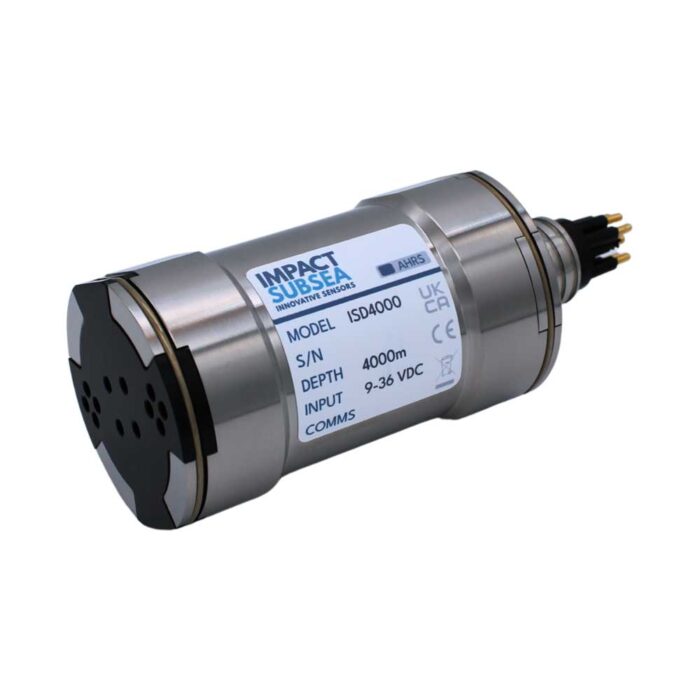

The ISD4000 is a compact, survey grade Depth & Temperature Sensor.

Optionally, the unit can also be provided with an integrated Attitude and Heading Reference System (AHRS). This provides highly stable Heading, Pitch and Roll readings.

  • 0.01% FS Depth Accuracy
  • 0.01°C Temperature Accuracy
  • Optional Heading, Pitch & Roll
  • Software to View, Log & Configure
  • Robust & Compact Housing
  • Emulate Any Device
  • Digital Interfaces
  • Survey Grade

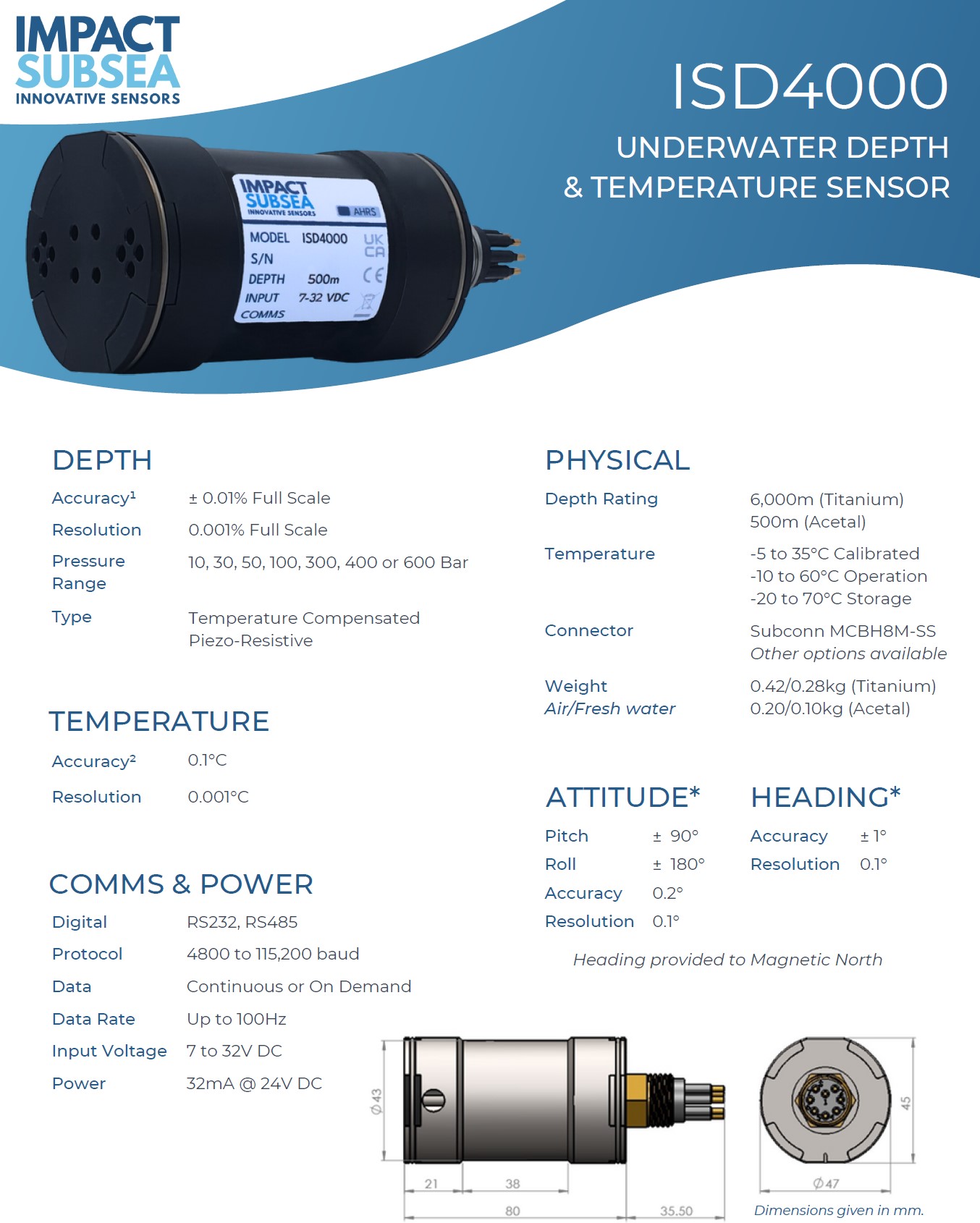

Factsheet: Impact Subsea ISD4000
Manual: Impact Subsea ISD4000
