Product Description

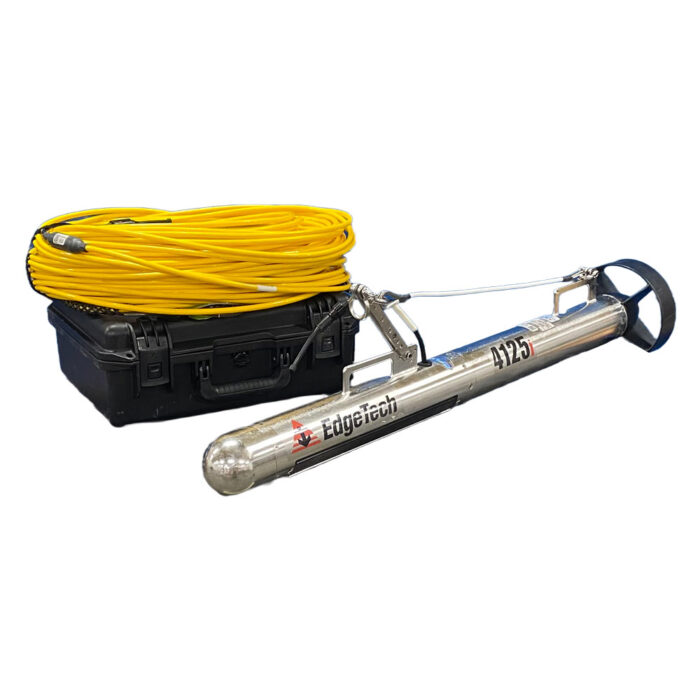

EdgeTech’s 4125i Side Scan Sonar System was designed with both the Search & Recovery (SAR) and shallow water survey communities in mind. The 4125i utilizes EdgeTech’s Full Spectrum® CHIRP technology, which provides higher resolution imagery at ranges up to 50% greater than non CHIRP systems operating at the same frequency. This translates into more accurate results and faster surveys, thus cutting down on costs.Two dual simultaneous frequency sets are available for the 4125i depending on the application. The 400/900 kHz set is the perfect tool for shallow water survey applications, providing an ideal combination of range and resolution. The 600/1600 kHz set is ideally suited for customers that require ultra high resolution imagery in order to detect very small targets (SAR).

There are two towfish options for the system; one with telemetry and one without. The towfish with added telemetry provides the ability to operate over longer tow cable lengths for operation in deeper waters. Both frequency sets are available for either towfish.

The 4125i system can be powered by both AC and DC for added versatility and is delivered in portable rugged cases for ease of transport from site-to-site. As is standard with all of EdgeTech’s towed side scan systems, the 4125i comes with a safety recovery system which will prevent the loss of a towfish if it becomes snagged on an obstacle during a survey.

A standard 4125i System comes with a choice of towfish and a portable water resistant topside processor with laptop computer  including EdgeTech’s easy-to-use Discover acquisition software. A 50m Kevlar tow cable is included as standard with customer-specified lengths also available. Multiple options are available such as a v-fin depressor, keel weight, pole mount and hull scan bracket for added versatility.
