Product Description

Equipment rental to supply a pole mountable 2-16 kHz/4-24kHz chirp based sub-bottom profiler. Comes with topside interface, 10-meter deck cable, acquisition laptop preconfigured with EdgeTech’s Discover control software, and transit cases.

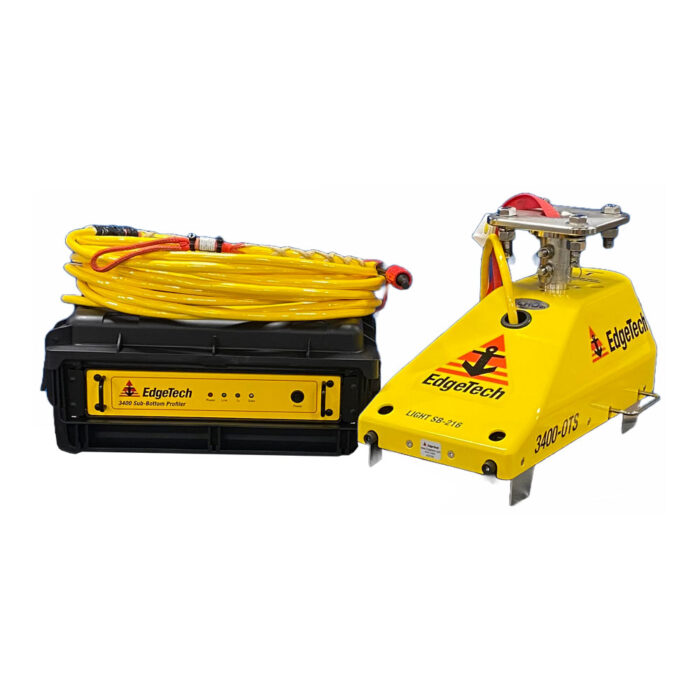

Building on the long running success of the EdgeTech sub-bottom profiler product line, the new over-the-side pole mount 3400-OTS provides users many unique enhancements to current sub-bottom profiler systems. The 3400-OTS transmits wide band Frequency Modulated (FM) pulses utilizing EdgeTech’s proprietary Full Spectrum CHIRP technology. The system uses flat multi-channel hydrophone array to generate high resolution images of the sub-bottom stratigraphy in oceans, lakes, and rivers and provides excellent penetration in various bottom types. The 3400-OTS receiver array is segmented for standard sub-bottom profiling operations or “pipeline” mode for optimal location and imaging of buried pipelines or cables. The system offers real-time reflection coefficient measurements. This unique ability of the EdgeTech sub-bottom profiler system allows users the ability to collect complex ‘analytic’ data using linear system architecture to measure sediment reflection and analyze sediment type determination. Additionally, the system has discrete transmit and receive channels allowing for continuous data collection resulting in a high ping rate particularly important for construction and pipeline surveys.

The lightweight 3400-OTS is ideal for shallow water surveys using small boats of
opportunity. While the low frequency model with dual transmitters and large receive array is ideal for deep water and windfarm applications.

The EdgeTech 3400-OTS sub-bottom profiling system comes as a complete package including EdgeTech’s DISCOVER sub-bottom acquisition & processing software. The 3400-OTS can also be interfaced to 3rd party software.
