Product Description

Building on the long running success of the EdgeTech sub-bottom profiler product line, the EdgeTech 3400 provides users many enhancements to current sub-bottom profiler systems. The 3400 is a wideband Frequency Modulated (FM) sub-bottom profiler utilizing EdgeTech’s proprietary Full Spectrum CHIRP technology. The system generates high resolution images of the sub-bottom stratigraphy in oceans, lakes, and rivers and provides excellent penetration in various bottom types. The EdgeTech 3400 comes in a dual 2-16 kHz transducer configuration. The towfish is configured with new PVDF receiver arrays segmented for standard sub-bottom profiling operations or a unique “pipeliner” mode for optimal location and imaging of buried pipelines. The system offers Real-Time Reflection Coefficient Measurements. This unique ability of the EdgeTech Sub-Bottom Profiler system allows users the ability to collect complex ‘analytic’ data using linear system architecture to measure sediment reflection and analyze sediment type determination. Additionally, the system has discrete transmit and receive channels allowing for continuous datacollection resulting in a high ping rate particularly important for construction and pipeline surveys.

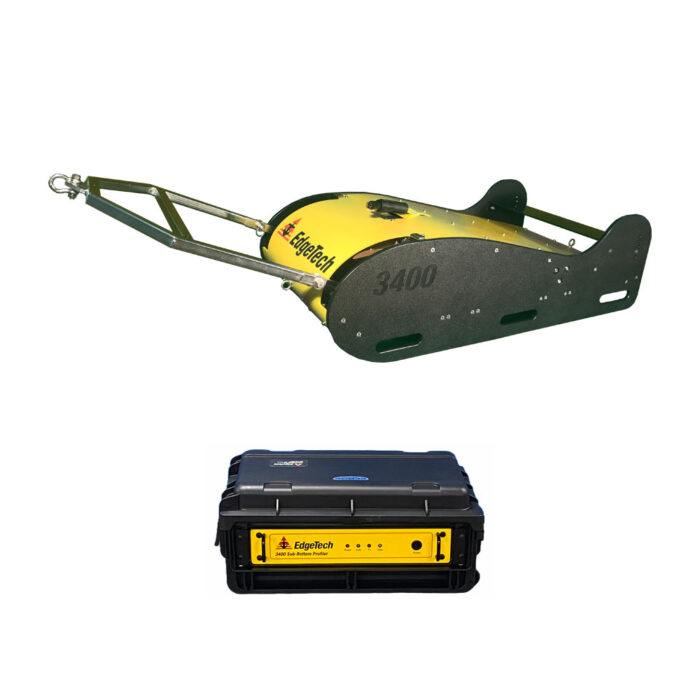

The topside configuration can support higher power configurations using an external amplifier. The newly designed towfish can either be towed behind a vessel or pole mounted over the side of the vessel. The EdgeTech 3400 Sub-bottom Profiling System comes as a complete package and includes a towfish, cable and a topside processor (configurable as a portable or rackmount topside) running EdgeTech’s DISCOVER sub-bottom acquisition & processing software. The 3400 can also be interfaced to 3rd party software.
