Product Description

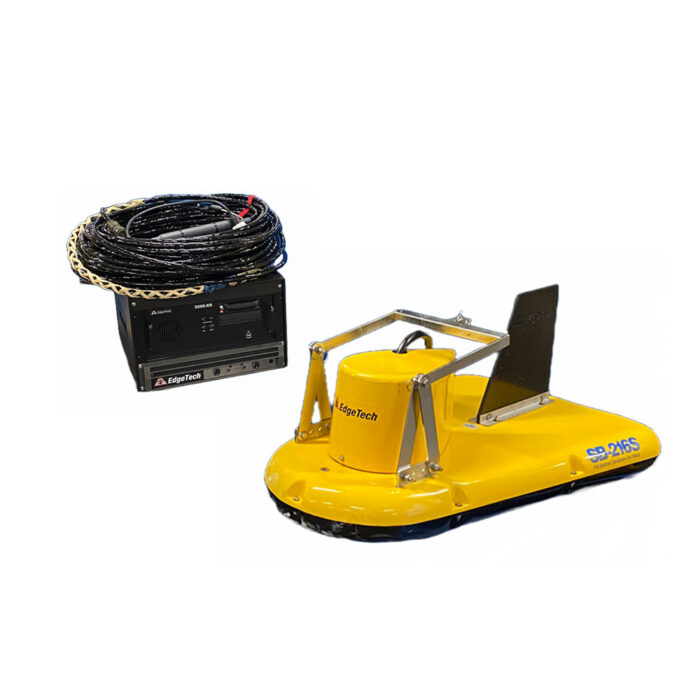

Equipment rental to supply a towed 4-24 kHz chirp based sub-bottom profiler. Comes with topside interface, 35-meter tow cable, acquisition laptop preconfigured with EdgeTech’s Discover control software, and transit cases.

The 3100 is EdgeTechs portable version of their highly successful sub-bottom profiler product line. The system utilizes EdgeTechs Full Spectrum CHIRP technology which provides high resolution imagery of the sub-bottom structure at penetration up to 100m.

The 3100 is ideally suited for use in rivers, lakes, ponds and shallow water ocean applications up to 300m max depth. The system was designed for customers that require a portable system that can be used from smaller boats while not wanting to sacrifice image quality.
