Applanix RTK POS MV SurfMaster RM IP68 INS
Maximize your ROI with Applanix® POS MV SurfMaster. SurfMaster is a user friendly, turnkey system designed and built to provide accurate attitude, heading, heave, position, and velocity data of your marine vessel and onboard sensors.
Applanix POS MV blends GNSS data with angular rate and acceleration data from an IMU and heading from GNSS Azimuth Measurement System (GAMS) to produce a robust and accurate full six degrees of freedom Position and Orientation solution.
All Applanix POS MV models are designed for use with multibeam sonar systems, enabling adherence to IHO (International Hydrographic Survey) standards on sonar swath widths of greater than ± 75 degrees under all dynamic conditions.
Product Description
• Up to 0.03° roll and pitch performance
• IN‑Fusion™ 2.0 ensures optimal GNSS aiding for any given conditions
• TrueHeave™ ‑ no requirement to tune filter for specific conditions, no settling time so no run in time
• High accuracy inertial measurement units featuring SmartCal™
• Data time tagged to microsecond accuracy
Comprising: POS MV Computer System (PCS), Rack Mount (RM) with RTK option PCS-100 with 10005002-07 Inertial Measurement Unit, submersible, IP68 enclosure SMIMUIP68 Alignment rail 10005649 Screw, M5 X 14 mm (quantity 2) 10004945 IP68 IMU cable, 10 m 10005142-10 GNSS antenna, 540AP (quantity 2) 10005790 GNSS cable, 10 m (quantity 2) 10005826-10 Ethernet cable, x-over 10001927 AC power cord, North America 10003867 Cable, RS232, FF (quantity 2) 10003863 USB flash drive, 8 GB 10005838 POSView and manuals on CD 10005101 Shipping case, PCS and IMU 10005528

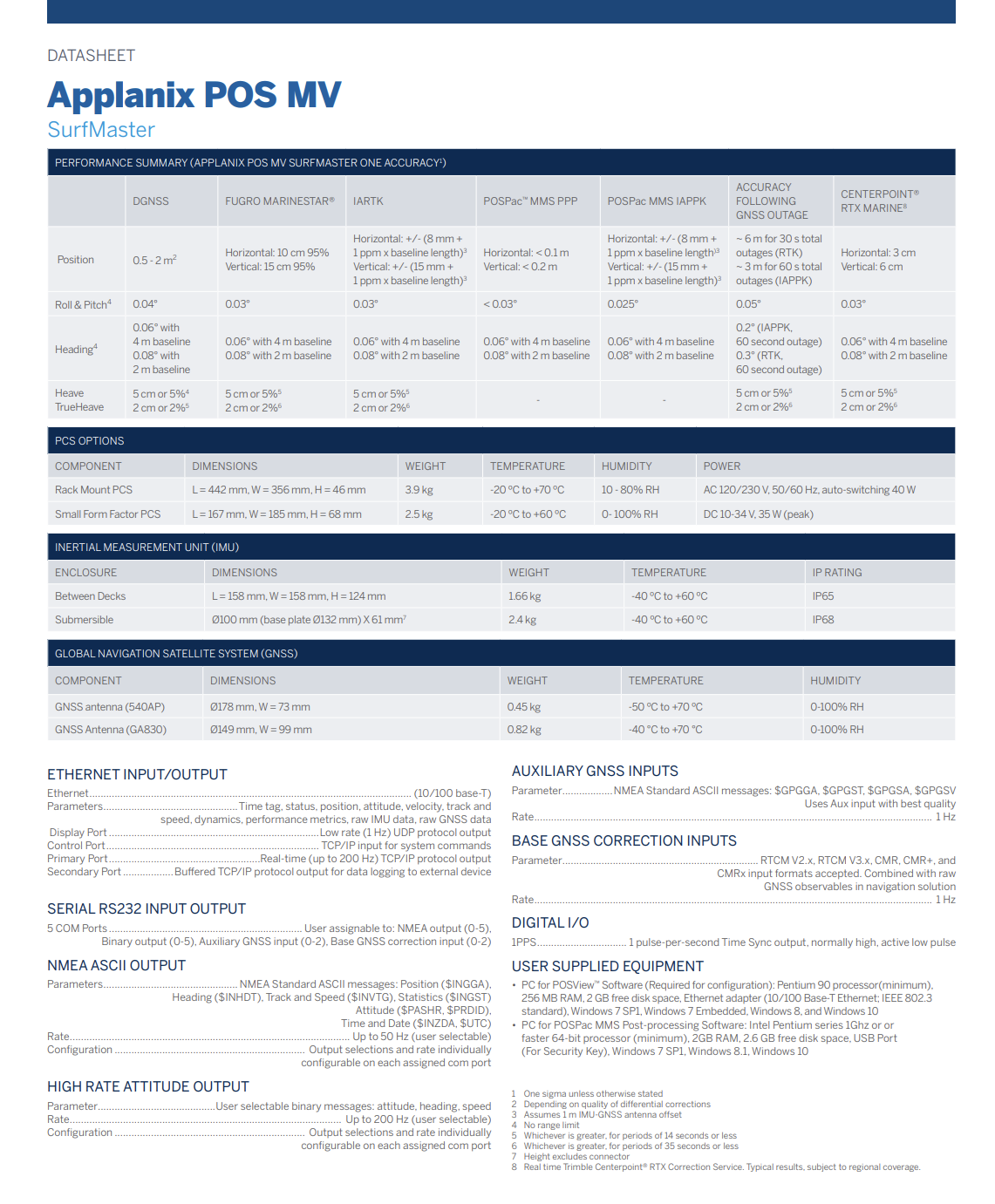

Factsheet: Applanix RTK POS MV SurfMaster RM IP68
Manual: Applanix RTK POS MV SurfMaster RM IP68
