Product Description

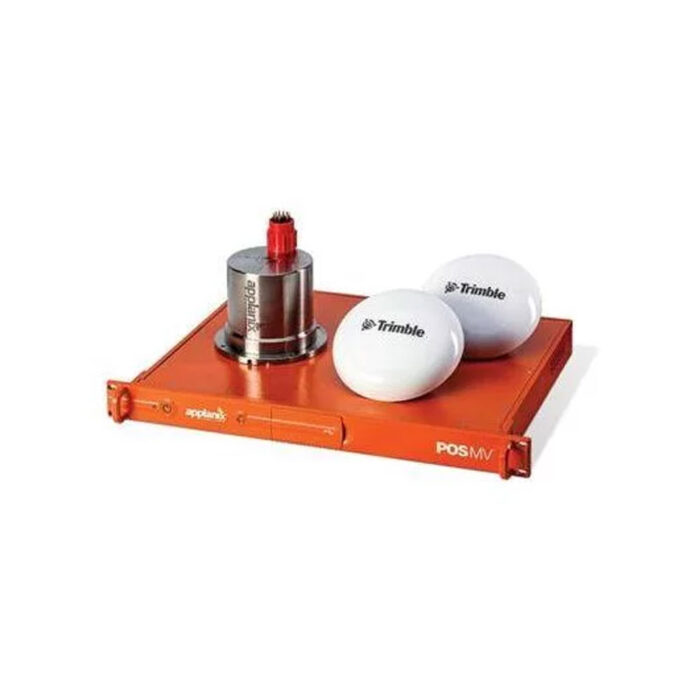

Equipment rental to supply an Applanix POS MV OceanMaster RM IP68. Comes with a deck mount inertial measurement unit (IMU), rackmount topside interface box, dual GNSS antennas, dual antenna cables, interface cables, software, user manual, and transit case.

Applanix POS MV blends GNSS data with angular rate and acceleration data from an IMU and heading from GNSS Azimuth Measurement System (GAMS) to produce a robust and accurate full six degrees of freedom Position and Orientation solution.

Applanix POS MV comes in 4 models:

• Applanix POS MV SurfMaster / SurfMaster One
• Applanix POS MV WaveMaster II
• Applanix POS MV OceanMaster
• Applanix POS MV Elite

All Applanix POS MV models are designed for use with multibeam sonar systems, enabling adherence to IHO (International Hydrographic Survey) standards on sonar swath widths of greater than ± 75 degrees under all dynamic conditions.

Upgrade Your Applanix POS MV System

Upgrade Includes:

• Brand new topside and IMU at a discounted rate
• 3-Year Standard Warranty
• Option to Extend to 5-Year Standard Warranty

Why Upgrade?

• Recommended for Systems where:
  • PCS is > 5 years old
  • IMU is > 10 years old

*Age limits not required!

Upgrade Process:

• Choose a performance level or form factor to suit your needs (even if it’s different from your existing system!)

Return existing PCS & IMU for disposal
